Load capacity : up to 1000 kg*.
No. of load cell : Two.
Cross Travel : up to 1000 mm*.
Horizontal day light : 450mm*.
Speed : Variable between 2mm/minute
to 500mm/minute.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.
Direct display and printout through
microcontroller:
Numeric test report consisting values of Peak
load, Break load, Elongation at peak load,
Elongation at break load, Tensile strength at
peak load, Tensile strength at break load, %
elongation at peak load, % elongation at break
load could be viewed on the micro controller and
printout could be obtained by directly attaching
a dot matrix printer to the equipment.
Graphic display and printout through PC:
In addition to the above reports, further values
like Young’s modulus, Yield load, Yield stress,
Flexural stress, Flexural modulus and Load Vs
Elongation graph could be obtained by attaching
a printer to the PC. Similarly average value and
standard deviation could be obtained by merging
different tests.
 |

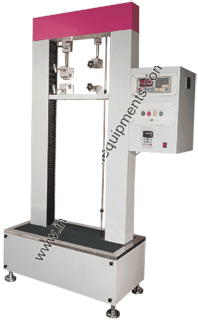

Computerised Twin Screw
Dual Channel Universal
Testing Machine – Higher version.
