Plastic Testing
Instrument
|
|
|

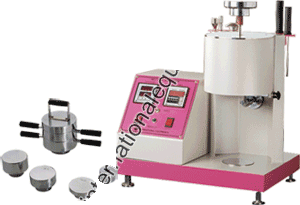

Melt Flow Index Tester as per ASTM D – 1238 to measure the flow rates of thermoplastics by
extrusion plastometer. This test indicates the uniformity of the flow rate of the polymer.
|
|
Temperature controller:
Micro processor based PID controller
with temperature range from ambient
to 400șC, resolution of 0.1șC and accuracy of +
0.1șC.
Timer :
Digital presettable with a range
up to 59 minutes, 59 seconds.
Sample cutting: Auto [Motorized]
Weights :
1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
Accessories : Standard
accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.
|
PDF Catalog |
|
|
(KAYJAY/1994/L) |
|
|
Temperature controller :
Micro processor based PID controller with
temperature range from
ambient to 375șC, resolution of 0.1șC and
accuracy of + 0.1șC.
Timer :
Digital presettable with a range up to
59 minutes, 59 seconds and having buzzer output.
Sample cutting : Manual.
Weights: 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6
kg.
Accessories : Standard
accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase
 |
PDF Catalog |
|
|
(KAYJAY/2005/CE) |
|
|
Temperature controller:
Micro processor based auto tuned PID controller
with temperature range from ambient to 400șC,
resolution of 0.1șC and accuracy of + 0.1șC.
Timer :
Digital presettable with a range up to 999
seconds
and having buzzer output.
Sample cutting : Manual.
Weights : 2.16 kg & 5 kg.
Accessories : Standard
accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.
|
PDF Catalog |
|
|
|
|
|
