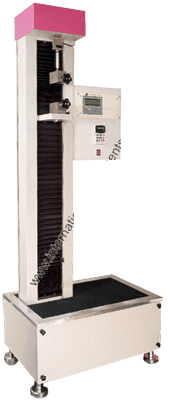

Single Screw Tensile Testing Machine

Single Screw Tensile Testing Machine

to check tensile and elongation properties of poly films and laminates as per ASTM D - 638 / ASTM D – 882 of plastics

Specification

Load capacity : Different Load cell options such as 34 kg, 50 kg, 100 kg, 225 kg.
No. of load cell : One.
Cross Travel : Up to 1000mm*.
Speed : Variable between 10mm/minute to 500mm/minute.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Send Enquiry
Model 1 offered with rubber padded gripers


Direct Display Through Microcontroller
Numeric test report consisting values of Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Secant modulus for flexural at selectable % strain values, Flexural Stress, Specimen width, Thickness, Gauge length, Set over travel and set over load could be viewed on the micro-controller and printout could be obtained by directly attaching a dot matrix printer to the machine.

Send Enquiry



Graphic Display And Printout Through PC
In addition to the above reports, further values like Young’s modulus, Yield stress, Yield point, Standard deviation, Intermediate result and Load Vs Elongation graph could be obtained by attaching a printer to the PC.
THROUGH THE PC THIS WILL BE A MULTI UNIT DISPLAY AS WELL AS PRINTOUT WHERE BY THE OPERATIONAL UNITS WOULD BE KG, CM, POUND, INCH, NEWTON & MM FOR CONVERSIONS IN ANY COMBINATION.


Send Enquiry
