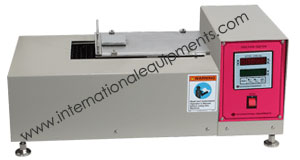

Digital / Computerized Static and Kinetic Coefficient of Friction Tester

as per ASTM D – 1894 to determine the coefficients of friction of plastic film and sheeting.

Specification :

Capacity : Up to 9.999 kg.
Direct display : Static and kinetic friction values.
Speed : 150mm/minute.
Weight of sled : 200 grams.
Accessories : Three nos. of S.S templates.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Features for Computerized version
with Direct Display & Printout using 40 column printer

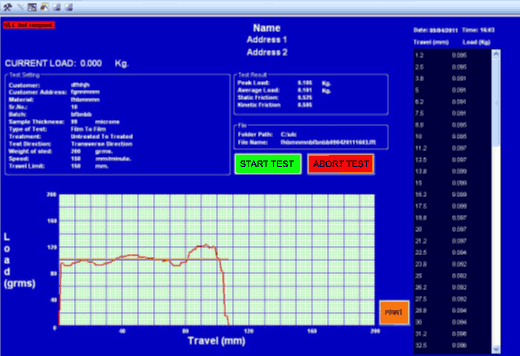

In additional to this, a software will be SUPPLIED TO BE INSTALLED in your P.C. through which Load Vs Travel graph along with result printout is possible. There is facility for merging 10 samples at a time with single printout showing Mean value & Standard deviation value for 10 samples.

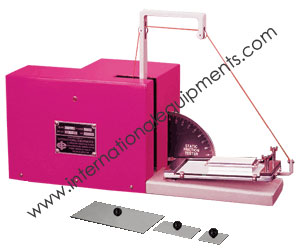

Inclined Plane Tester

as per Tappy T – 815 standard to determine the coefficients of friction between film to film, film to metal and film to glass.

Specification:

Speed : 1.5º to 2.0º / second.
Weight of the sled: 750 grams.
Size of sled : 4 inch X 2 inch.
Accessories : 2 nos. of S.S templates.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.
